Price for CNC Plasma Cutting Machines
NT-PLASMA

Please, select modification of Plasma Cutting Machine what you intrested

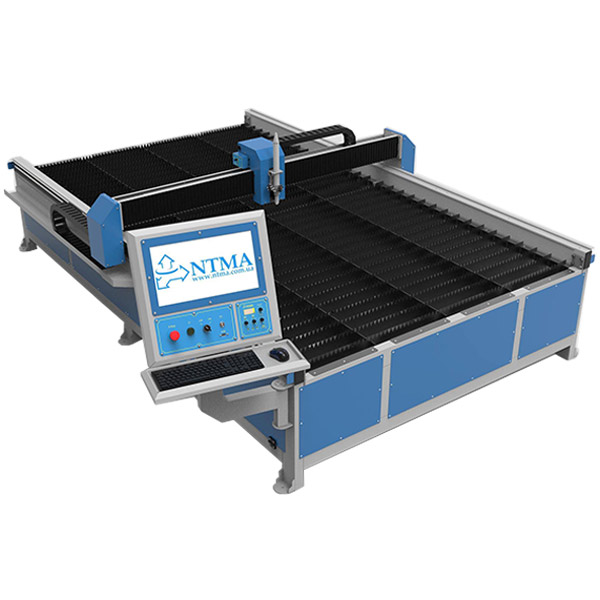

Plasma Cutting Machine NT-PLASMA 3015

Working area: 3000 х 1500 х 100 mm
Dimensions: 3440 x 2320 x 1455 mm
Weight: 665kg
Maximum load on the table: 1500kg
Maximum travel speed (X, Y): 20 m / min
Maximum moving speed (Z): 2 m / min
Movement accuracy, not less than: 0,1mm
Power supply: 380V
Current frequency: 50 ± 2% Hz
Pressure in the pneumatic system (Atm): 6,0-8,0
Drive axles: Stepper motor with encoder
Torch Height Control: ТНС NT-1
OS: Windows
Software: MACH 3, SheetCAM, CutLeader

Modification	Parameters	Price
NT-PLASMA 3015 + Hypertherm PowerMax 45XP	Recommended: 16 mm (500 mm/min), 22 mm (250 mm/min) Pierce*: 12 mm	$12300
NT-PLASMA 3015 + Hypertherm PowerMax 65	Recommended: 20 mm (500 mm/min), 25 mm (250 mm/min) Pierce*: 16 mm	$13530
NT-PLASMA 3015 + Hypertherm PowerMax 85	Recommended: 25 mm (500 mm/min), 32 mm (250 mm/min) Pierce*: 20 mm	$14910
NT-PLASMA 3015 + Hypertherm PowerMax 105	Recommended: 32 mm (500 mm/min), 38 mm (250 mm/min) Pierce*: 22 mm	$17040
NT-PLASMA 3015 + Hypertherm PowerMax 125	Recommended: 38 mm (457 mm/min), 44 mm (250 mm/min) Pierce*: 25 mm	$19980
NT-PLASMA 3015 + Hypertherm MaxPro 200	Maximum: 75 mm Pierce*: 32 mm	Need estimate price

* Pierce rating for handheld use or with automatic torch height control

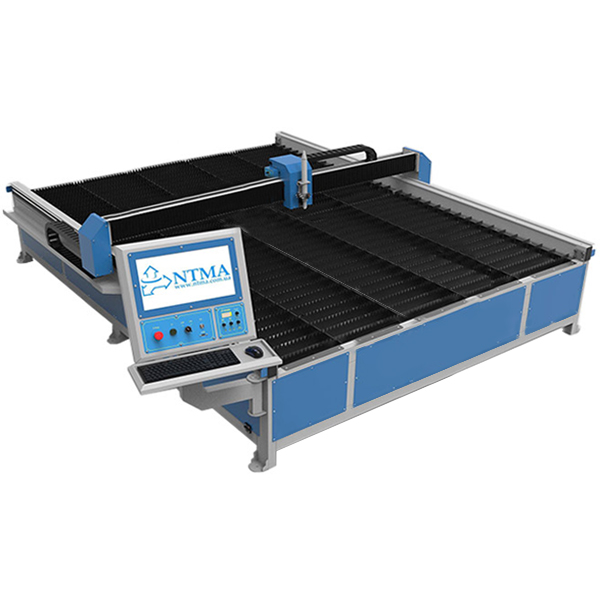

Plasma Cutting Machine NT-PLASMA 3020

Working area: 3000 х 2000 х 100 mm
Dimensions: 3440 x 2860 x 1455 mm
Weight: 665kg
Maximum load on the table: 1500kg
Maximum travel speed (X, Y): 20 m / min
Maximum moving speed (Z): 2 m / min
Movement accuracy, not less than: 0,1mm
Power supply: 380V
Current frequency: 50 ± 2% Hz
Pressure in the pneumatic system (Atm): 6,0-8,0
Drive axles: Stepper motor with encoder
Torch Height Control: ТНС NT-1
OS: Windows
Software: MACH 3, SheetCAM, CutLeader

Modification	Parameters	Price
NT-PLASMA 3020 + Hypertherm PowerMax 45XP	Recommended: 16 mm (500 mm/min), 22 mm (250 mm/min) Pierce*: 12 mm	$12900
NT-PLASMA 3020 + Hypertherm PowerMax 65	Recommended: 20 mm (500 mm/min), 25 mm (250 mm/min) Pierce*: 16 mm	$14130
NT-PLASMA 3020 + Hypertherm PowerMax 85	Recommended: 25 mm (500 mm/min), 32 mm (250 mm/min) Pierce*: 20 mm	$15510
NT-PLASMA 3020 + Hypertherm PowerMax 105	Recommended: 32 mm (500 mm/min), 38 mm (250 mm/min) Pierce*: 22 mm	$17640
NT-PLASMA 3020 + Hypertherm PowerMax 125	Recommended: 38 mm (457 mm/min), 44 mm (250 mm/min) Pierce*: 25 mm	$20580
NT-PLASMA 3020 + Hypertherm MaxPro 200	Maximum: 75 mm Pierce*: 32 mm	Need estimate price

* Pierce rating for handheld use or with automatic torch height control

Plasma Cutting Machine NT-PLASMA 3520

Working area: 3500 х 2000 х 100 mm
Dimensions: 3960 x 2860 x 1455 mm
Weight: 665kg
Maximum load on the table: 1500kg
Maximum travel speed (X, Y): 20 m / min
Maximum moving speed (Z): 2 m / min
Movement accuracy, not less than: 0,1mm
Power supply: 380V
Current frequency: 50 ± 2% Hz
Pressure in the pneumatic system (Atm): 6,0-8,0
Drive axles: Stepper motor with encoder
Torch Height Control: ТНС NT-1
OS: Windows
Software: MACH 3, SheetCAM, CutLeader

Modification	Parameters	Price
NT-PLASMA 3520 + Hypertherm PowerMax 45XP	Recommended: 16 mm (500 mm/min), 22 mm (250 mm/min) Pierce*: 12 mm	$13500
NT-PLASMA 3520 + Hypertherm PowerMax 65	Recommended: 20 mm (500 mm/min), 25 mm (250 mm/min) Pierce*: 16 mm	$14730
NT-PLASMA 3520 + Hypertherm PowerMax 85	Recommended: 25 mm (500 mm/min), 32 mm (250 mm/min) Pierce*: 20 mm	$16110
NT-PLASMA 3520 + Hypertherm PowerMax 105	Recommended: 32 mm (500 mm/min), 38 mm (250 mm/min) Pierce*: 22 mm	$18240
NT-PLASMA 3520 + Hypertherm PowerMax 125	Recommended: 38 mm (457 mm/min), 44 mm (250 mm/min) Pierce*: 25 mm	$21180
NT-PLASMA 3520 + Hypertherm MaxPro 200	Maximum: 75 mm Pierce*: 32 mm	Need estimate price

* Pierce rating for handheld use or with automatic torch height control

Plasma Cutting Machine NT-PLASMA 3015r

Working area: 3000 х 1500 х 100 mm
Dimensions: 3610 x 3060 x 1455 mm
Weight: 665kg
Maximum load on the table: 1500kg
Maximum travel speed (X, Y): 20 m / min
Maximum moving speed (Z): 2 m / min
Movement accuracy, not less than: 0,1mm
Power supply: 380V
Current frequency: 50 ± 2% Hz
Pressure in the pneumatic system (Atm): 6,0-8,0
Drive axles: Stepper motor with encoder
Torch Height Control: ТНС NT-1
OS: Windows
Software: MACH 3, SheetCAM, CutLeader

Modification	Parameters	Price
NT-PLASMA 3015r + Hypertherm PowerMax 45XP	Recommended: 16 mm (500 mm/min), 22 mm (250 mm/min) Pierce*: 12 mm	$15300
NT-PLASMA 3015r + Hypertherm PowerMax 65	Recommended: 20 mm (500 mm/min), 25 mm (250 mm/min) Pierce*: 16 mm	$16530
NT-PLASMA 3015r + Hypertherm PowerMax 85	Recommended: 25 mm (500 mm/min), 32 mm (250 mm/min) Pierce*: 20 mm	$17910
NT-PLASMA 3015r + Hypertherm PowerMax 105	Recommended: 32 mm (500 mm/min), 38 mm (250 mm/min) Pierce*: 22 mm	$20040
NT-PLASMA 3015r + Hypertherm PowerMax 125	Recommended: 38 mm (457 mm/min), 44 mm (250 mm/min) Pierce*: 25 mm	$22980
NT-PLASMA 3015r + Hypertherm MaxPro 200	Maximum: 75 mm Pierce*: 32 mm	Need estimate price

* Pierce rating for handheld use or with automatic torch height control

Plasma Cutting Machine NT-PLASMA 3020r

Working area: 3000 х 2000 х 100 mm
Dimensions: 3610 x 3340 x 1455 mm
Weight: 665kg
Maximum load on the table: 1500kg
Maximum travel speed (X, Y): 20 m / min
Maximum moving speed (Z): 2 m / min
Movement accuracy, not less than: 0,1mm
Power supply: 380V
Current frequency: 50 ± 2% Hz
Pressure in the pneumatic system (Atm): 6,0-8,0
Drive axles: Stepper motor with encoder
Torch Height Control: ТНС NT-1
OS: Windows
Software: MACH 3, SheetCAM, CutLeader

Modification	Parameters	Price
NT-PLASMA 3020r + Hypertherm PowerMax 45XP	Recommended: 16 mm (500 mm/min), 22 mm (250 mm/min) Pierce*: 12 mm	$15900
NT-PLASMA 3020r + Hypertherm PowerMax 65	Recommended: 20 mm (500 mm/min), 25 mm (250 mm/min) Pierce*: 16 mm	$17130
NT-PLASMA 3020r + Hypertherm PowerMax 85	Recommended: 25 mm (500 mm/min), 32 mm (250 mm/min) Pierce*: 20 mm	$18510
NT-PLASMA 3020r + Hypertherm PowerMax 105	Recommended: 32 mm (500 mm/min), 38 mm (250 mm/min) Pierce*: 22 mm	$20640
NT-PLASMA 3020r + Hypertherm PowerMax 125	Recommended: 38 mm (457 mm/min), 44 mm (250 mm/min) Pierce*: 25 mm	$23580
NT-PLASMA 3020r + Hypertherm MaxPro 200	Maximum: 75 mm Pierce*: 32 mm	Need estimate price

* Pierce rating for handheld use or with automatic torch height control

Plasma Cutting Machine NT-PLASMA 3520r

Working area: 3500 х 2000 х 100 mm
Dimensions: 4130 x 3340 x 1455 mm
Weight: 665kg
Maximum load on the table: 1500kg
Maximum travel speed (X, Y): 20 m / min
Maximum moving speed (Z): 2 m / min
Movement accuracy, not less than: 0,1mm
Power supply: 380V
Current frequency: 50 ± 2% Hz
Pressure in the pneumatic system (Atm): 6,0-8,0
Drive axles: Stepper motor with encoder
Torch Height Control: ТНС NT-1
OS: Windows
Software: MACH 3, SheetCAM, CutLeader

Modification	Parameters	Price
NT-PLASMA 3520r + Hypertherm PowerMax 45XP	Recommended: 16 mm (500 mm/min), 22 mm (250 mm/min) Pierce*: 12 mm	$17510
NT-PLASMA 3520r + Hypertherm PowerMax 65	Recommended: 20 mm (500 mm/min), 25 mm (250 mm/min) Pierce*: 16 mm	$18730
NT-PLASMA 3520r + Hypertherm PowerMax 85	Recommended: 25 mm (500 mm/min), 32 mm (250 mm/min) Pierce*: 20 mm	$20110
NT-PLASMA 3520r + Hypertherm PowerMax 105	Recommended: 32 mm (500 mm/min), 38 mm (250 mm/min) Pierce*: 22 mm	$22240
NT-PLASMA 3520r + Hypertherm PowerMax 125	Recommended: 38 mm (457 mm/min), 44 mm (250 mm/min) Pierce*: 25 mm	$25180
NT-PLASMA 3520r + Hypertherm MaxPro 200	Maximum: 75 mm Pierce*: 32 mm	Need estimate price

* Pierce rating for handheld use or with automatic torch height control
