CNC Plasma Cutting Machines
NT-PLASMA

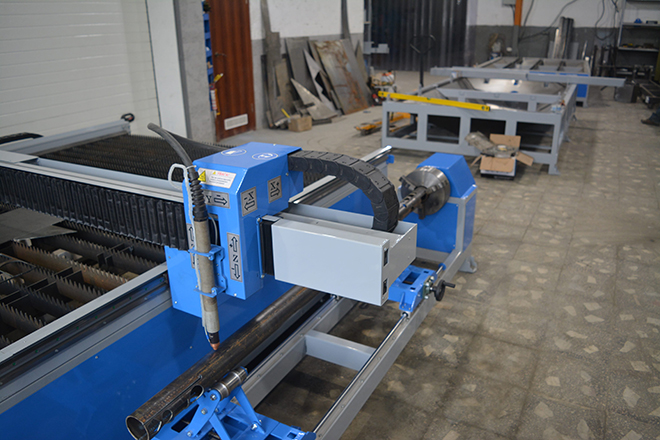

CNC Plasma Cutting Machine NT-PLASMA TUBE

Parameters of Plasma Cutting Machine NT-PLASMA 3015 TUBE

  • Design: Moving portal
  • Working surface: 3000 х 1500 х 100 mm
  • Overall dimensions: 3610 x 3060 x 1455 mm
  • Weight: 665kg
  • Maximum load on the table: 1500kg
  • Maximum travel speed (X, Y): 20 m / min
  • Maximum moving speed (Z): 2 m / min
  • Movement accuracy, not less than: 0,1mm
  • Power supply: 380V
  • Current frequency: 50 ± 2% Hz
  • Pressure in the pneumatic system (Atm): 6,0-8,0
  • Drive axles: stepper motor
  • Torch Height Control: ТНС NT-1
  • Mechanisms of feedings: toothed
  • OS: Windows
  • Software: MACH 3, SheetCAM TNG, CutLeader
Please, see another version of out CNC machines and price for them.
NT-Plasma TUBE

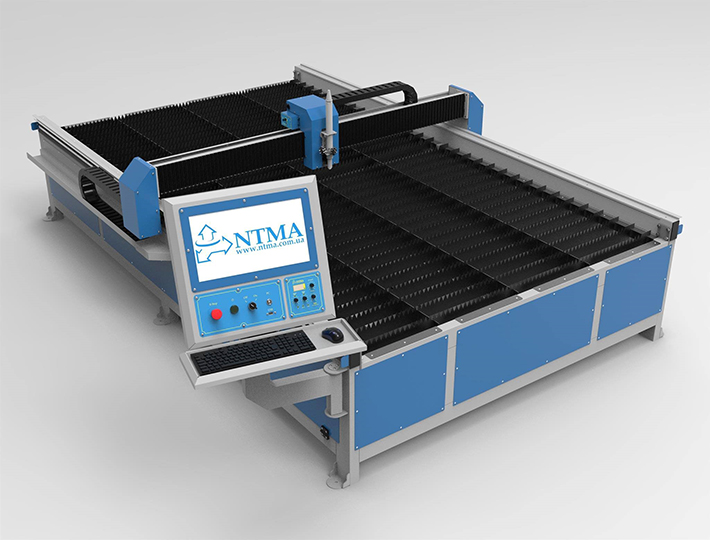

CNC Plasma Cutting Machine NT-PLASMA

Parameters of Plasma Cutting Machine NT-PLASMA 3015

  • Design: Moving portal
  • Working surface: 3000 х 1500 х 100 mm
  • Overall dimensions: 3330 x 2130 x 1085 mm
  • Weight: 710kg
  • Maximum load on the table: 1500kg
  • Maximum travel speed (X, Y): 20 m / min
  • Maximum moving speed (Z): 2 m / min
  • Movement accuracy, not less than: 0,1mm
  • Power supply: 380V
  • Current frequency: 50 ± 2% Hz
  • Pressure in the pneumatic system (Atm): 6,0-8,0
  • Drive axles: stepper motor
  • Torch Height Control: ТНС NT-1
  • Mechanisms of feedings: toothed
  • OS: Windows
  • Software: MACH 3, SheetCAM, CutLeader
Please, see another version of out CNC machines and price for them.

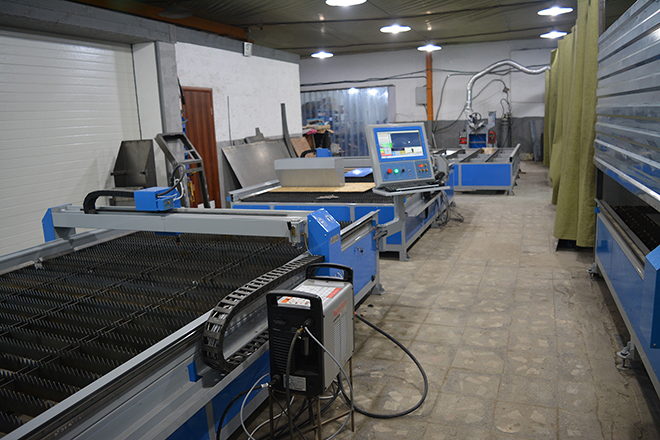

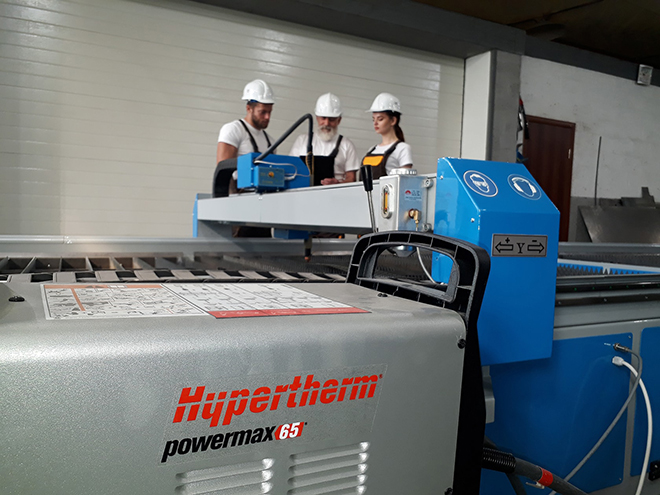

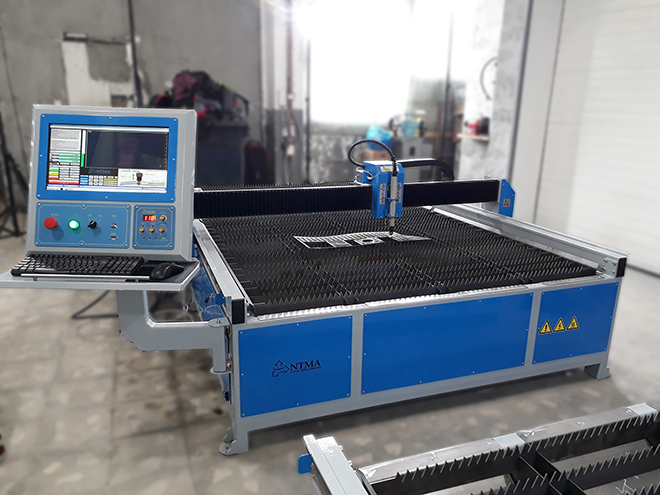

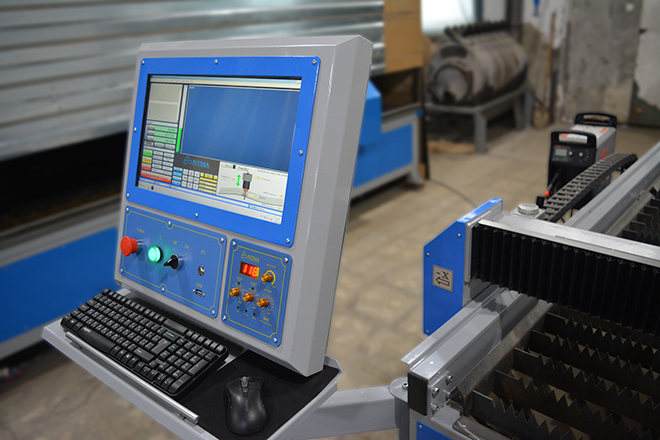

NT-Plasma 3015 Manufactures NTMA LLC company CNC control panel for NT-Plasma Hypertherm powermax 65 and NT-Plasma
NT-Plasma 3015 operator guide

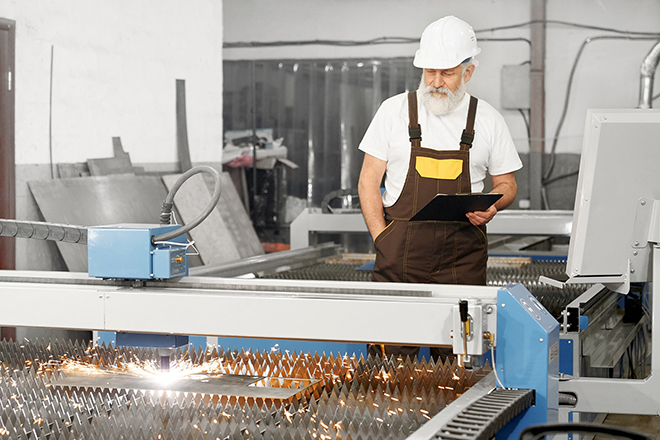

NT-Plasma in works

NT-PLASMA 3015 is accurate in operation.

High-level positioning accuracy is achieved with high-quality controllers, stepper motor drivers and more.

NT-PLASMA 3015 is easy to operate.

To the complete set of the machine, we provide software for management, which is very easy to use. We also provide online training.

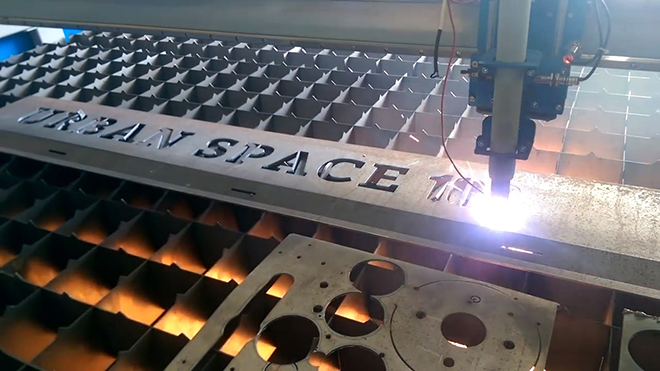

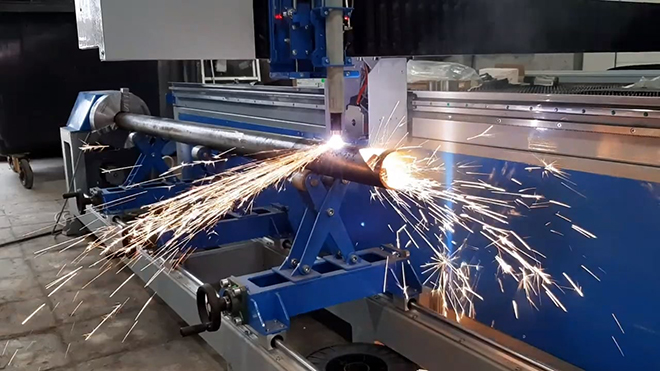

CNC Plasma Cutting Machines NT-PLASMA and NT-PLASMA TUBE in works
